What’s the Mechanism Behind a Retractable Pen?

That satisfying click. It’s a sound many of us associate with getting ready to write, jotting down a quick note, or even just fidgeting. The retractable ballpoint pen is such a ubiquitous part of modern life that we rarely stop to think about the clever little machine hiding inside its plastic or metal shell. How does that simple push of a button make the pen tip appear and disappear on command? It’s not magic, but rather a neat piece of mechanical engineering centered around a component often called a cam mechanism. Before diving into the mechanics, let’s consider why we even need pens to retract. The primary reason is practicality. An exposed ballpoint tip can easily mark up the inside of a pocket, purse, or pencil case. Furthermore, although less critical for modern ballpoint inks than older fountain pen inks, retracting the tip offers some protection against drying out and accumulating dust or debris, ensuring a smoother writing experience when you next need it. The retractable mechanism solves these problems elegantly, keeping the ink contained until needed.

The Cast of Characters Inside Your Pen

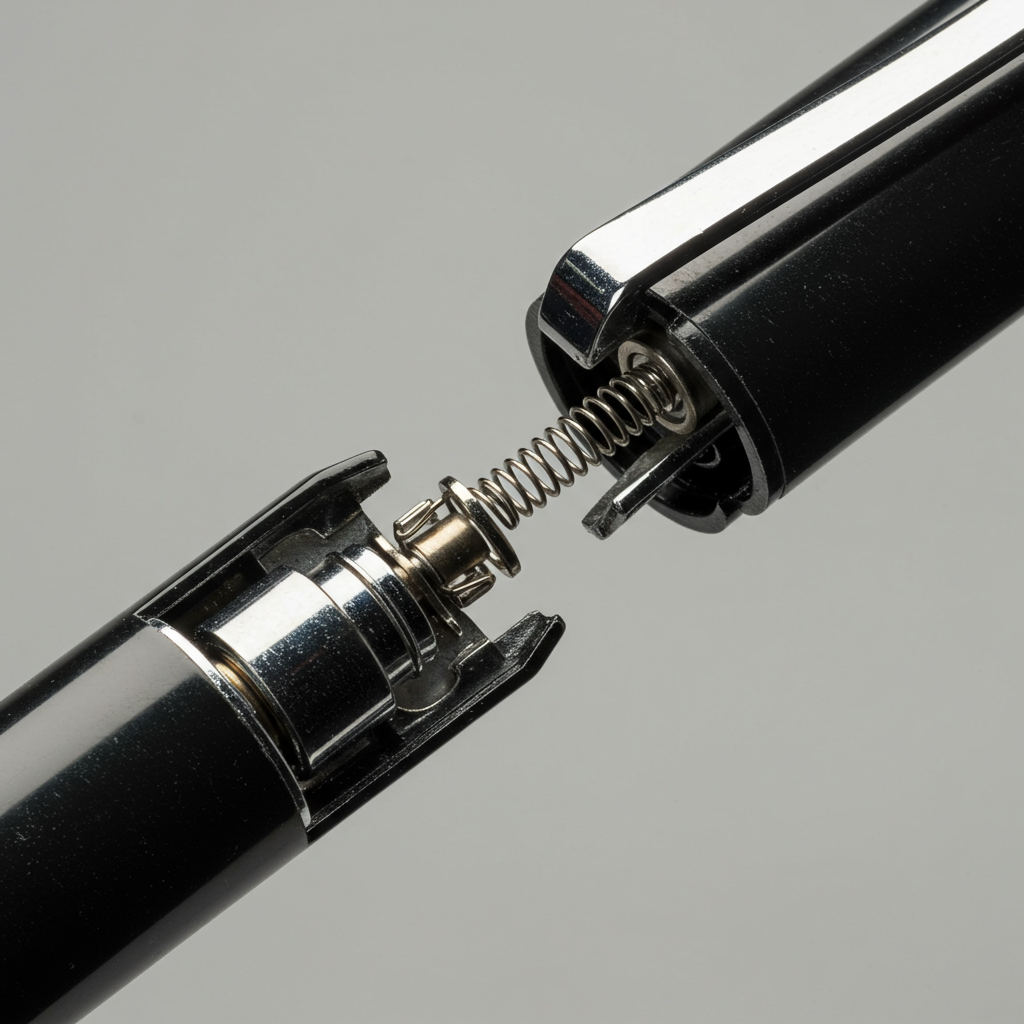

While designs can vary slightly, most common clicky pens rely on a similar set of internal parts working together. If you were to (carefully) disassemble one, you’d likely find:

• The Outer Barrel: This is the main body of the pen you hold. It houses everything else and provides the structure.
• The Ink Cartridge: A tube containing the ink and the ballpoint tip at its end. This is the part that actually moves in and out.
• The Spring: Usually a small coil spring. Its job is to provide the force to push the ink cartridge back *into* the barrel when retracted. It’s constantly under some compression when the tip is extended.
• The Plunger (or Button): The part you push at the top. This initiates the action.
• The Cam Mechanism: This is the real star. It’s a small, often rotating, component that translates the simple push of the plunger into the extend/lock and retract/release actions. It usually interacts with the top end of the ink cartridge or a piece connected to it.

The Heart of the Click: The Cam Mechanism

Imagine a tiny rotating part, usually made of plastic, located near the top of the ink cartridge, just below the plunger. This is the cam. Its design is crucial. It typically features a specific arrangement of sloped surfaces, grooves, notches, and flat ledges around its circumference or on its face. Think of it like a carefully designed track or a miniature maze. Connected to the top of the ink cartridge, or acting directly upon it, is a follower or a set of small protrusions. These followers engage with the tracks and notches on the cam. The plunger doesn’t usually push the ink cartridge down directly; instead, it pushes on this cam mechanism. When you press the plunger, you force the cam downwards. Because of the slopes and guides within the pen’s internal structure (often moulded into the barrel itself or a separate small piece), this downward motion also forces the cam to rotate a specific amount. It’s this rotation, combined with the shape of the cam’s tracks, that controls the pen tip’s position.

Understanding the Rotation and Lock

The cam often has a sort of zig-zag or sawtooth pattern cut into it, or a series of internal channels. Let’s simplify and visualize a common type:

1. Resting State (Retracted): The spring holds the ink cartridge up inside the barrel. The follower attached to the cartridge rests in a ‘high’ position within the cam’s track.
2. First Push (Extend): You push the plunger. This pushes the cam down. The follower on the cartridge is forced to follow the cam’s track downwards and, crucially, rotate the cam slightly as it moves. At the bottom of the push, the follower slides past a slope and comes to rest on a flat ‘ledge’ or locks into a shallow notch on the cam track.
3. Release the Plunger: When you take your thumb off, the main spring tries to push the cartridge back up. However, the follower is now caught on that ledge! It can’t travel back up the same path it came down because the cam has rotated. The cartridge is now locked in the extended, writing position. Click!

The Second Click: Retraction Time

So, how does the next click make it go back in? The process repeats, but the cam’s rotation leads to a different outcome:

1. Second Push (Retract): You push the plunger again. Once more, this pushes the cam mechanism down, and forces it to rotate further in the same direction.
2. Finding the Escape Route: This further rotation moves the ‘ledge’ the follower was resting on out of the way. The follower is now aligned with a different part of the cam track – an upward slope or a clear channel leading back to the original ‘high’ or retracted position.
3. Release the Plunger Again: You take your thumb off. This time, there’s nothing holding the follower back. The main spring’s stored energy instantly pushes the ink cartridge (and its follower) upwards along this newly available retraction path within the cam track. The pen tip disappears back into the barrel. Click!

The cam is now back, or nearly back, to its starting orientation, ready for the cycle to begin again with the next push.

The Cam is Key: The ingenious part of the retractable pen mechanism is the cam component. This small, rotating piece features precisely shaped tracks or grooves. Each push of the plunger forces the cam to rotate incrementally, guiding a follower (connected to the ink cartridge) into either a locked (extended) position or a release (retracted) path, all powered by the user’s push and the return spring.

Variations on a Theme

While the push-button, rotate-and-lock cam mechanism described above is the most common, it’s not the only way retractable pens work. Some pens use a twist mechanism. Here, rotating the pen’s barrel (or a section of it) drives a threaded component or a different style of cam, which pushes the ink cartridge forward and locks it, often using friction or a simpler detent rather than the complex rotational lock of a clicky pen. Other designs might use slightly different cam shapes or multi-part followers, but the core principle of using a guided mechanical movement to convert a simple action (push or twist) into a locking and unlocking sequence remains the same.

Elegance in Simplicity

Think about how many times a retractable pen is clicked open and closed in its lifetime. Thousands? Tens of thousands? Yet, they usually keep working reliably. This is a testament to clever design using relatively simple, durable parts, typically injection-moulded plastic or sometimes metal for the cam and follower components. The forces involved are small, and the parts are designed to slide past each other with minimal wear. The spring provides the necessary return force, and the outer barrel holds everything in precise alignment. It’s a beautiful example of mechanics working seamlessly. The tolerances (the allowable variations in dimensions) have to be quite precise for the locking and unlocking to happen reliably every single time, yet these pens are mass-produced incredibly cheaply.

Handle With Care: While generally robust, dropping a retractable pen, especially onto a hard surface while extended, can sometimes damage the delicate cam mechanism or misalign the parts. Forcing the mechanism if it feels stuck can also lead to breakage. If your pen stops clicking correctly, careful disassembly and reassembly might fix it, but often the tiny plastic parts may have snapped.

More Than Just a Click

So, the next time you click your pen, take a moment to appreciate the tiny marvel of engineering nestled inside. It’s not just a button and a spring; it’s a carefully choreographed dance of cams, followers, slopes, and ledges, all working together to perform a simple task reliably, thousands upon thousands of times. That humble click represents a neat solution to a common problem, making our writing lives just that little bit easier and cleaner. From preventing ink stains to the simple satisfaction of the click itself, the retractable pen’s mechanism is a small but significant piece of everyday design brilliance. It transforms a straightforward push into a two-stage, lock-and-release cycle using nothing more than basic mechanical principles and cleverly shaped components. It truly is engineering you can hold in your hand.
